Down Flow Cabinets

Down Flow Cabinets

Fingerprint dusting, one of the most effective methods for latent print development, is made significantly safer and more efficient with EMT Electronics™’ Down Flow Cabinets. Specifically engineered to protect operators from inhaling harmful powders or fumes, these cabinets feature a high-level multi-angle filtration system. Pre-filters and HEPA (High-Efficiency Particulate Air) filters work in tandem to ensure that airborne particles remain contained, maintaining a clean and secure workspace for forensic professionals.

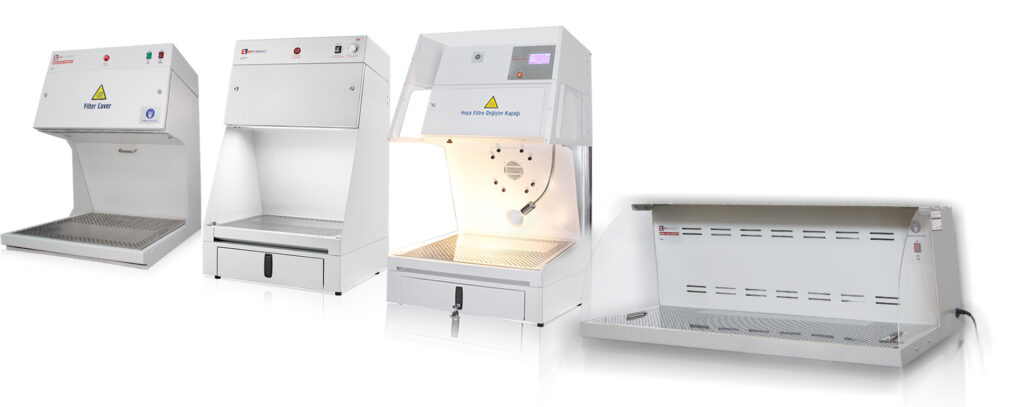

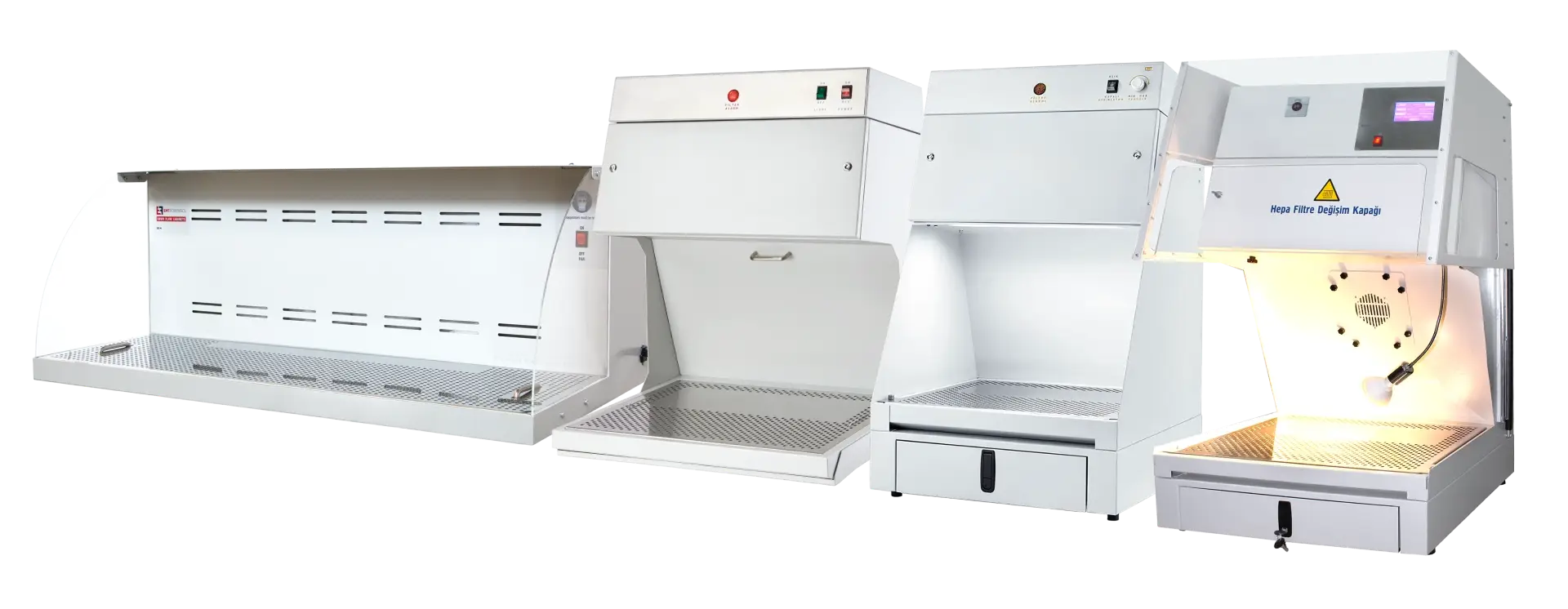

Offered in 4 models, EMT Electronics™ Down Flow Cabinets are designed to meet your storage needs, ensuring the best fit for your operational requirements.

Feature Description

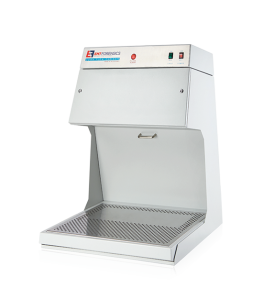

External Dimensions XDC-01 (WxHxD) 710 x 845 x 600 mm
Working Surface Dimensions XDC-01 (WxHxD) 660 x 485 mm
External Dimensions XDC-02 (WxHxD) 600 x 980 x 600 mm
Working Surface Dimensions XDC-02 (WxHxD) 660 x 485 mm
External Dimensions XDC-03 (WxHxD) 765 x 1215 x 720 mm
Working Surface Dimensions XDC-03 (WxHxD) 760 x 495 mm
External Dimensions XDC-04 (WxHxD) 1232 x 445 x 610 mm
Weight 55 kg XDC-03- 80 kg
Body Material Electrostatic Painted Steel (DKP)
Working Table Stainless Steel (AISI 304)
Drawer (1 Piece) (H) 100mm
Feature Value
Voltage 220 – 240 V AC 50 Hz – 110 V AC 60 Hz (±10%)
Lighting 0.13A -31W
Air Filteration 0.51A-122W
Max Power 140 W
Average Power Consumption 122 W / Hour (Depends on configuration)
Feature Value
Filters HEPA Filter (High efficeny particle arrestance filter)
Filters Pre Filter (Before entereing HEPA filter)
ON / OFF By button
Lighting By button
Feature Description
Alarm Type Visual alarm and buzzer
Alarm Reason When the efficiency of the filters decreased
Alarm Duration Until the filters are changed
Feature
Rapid Recovery and Efficiency
Wide Range of Temperature and Humidity
Spacious Working Area
Homogeneous Distribution
Keyless Operation
Unauthorized Access Prevention
Smart Security Monitoring
Enhanced Air Quality Option
