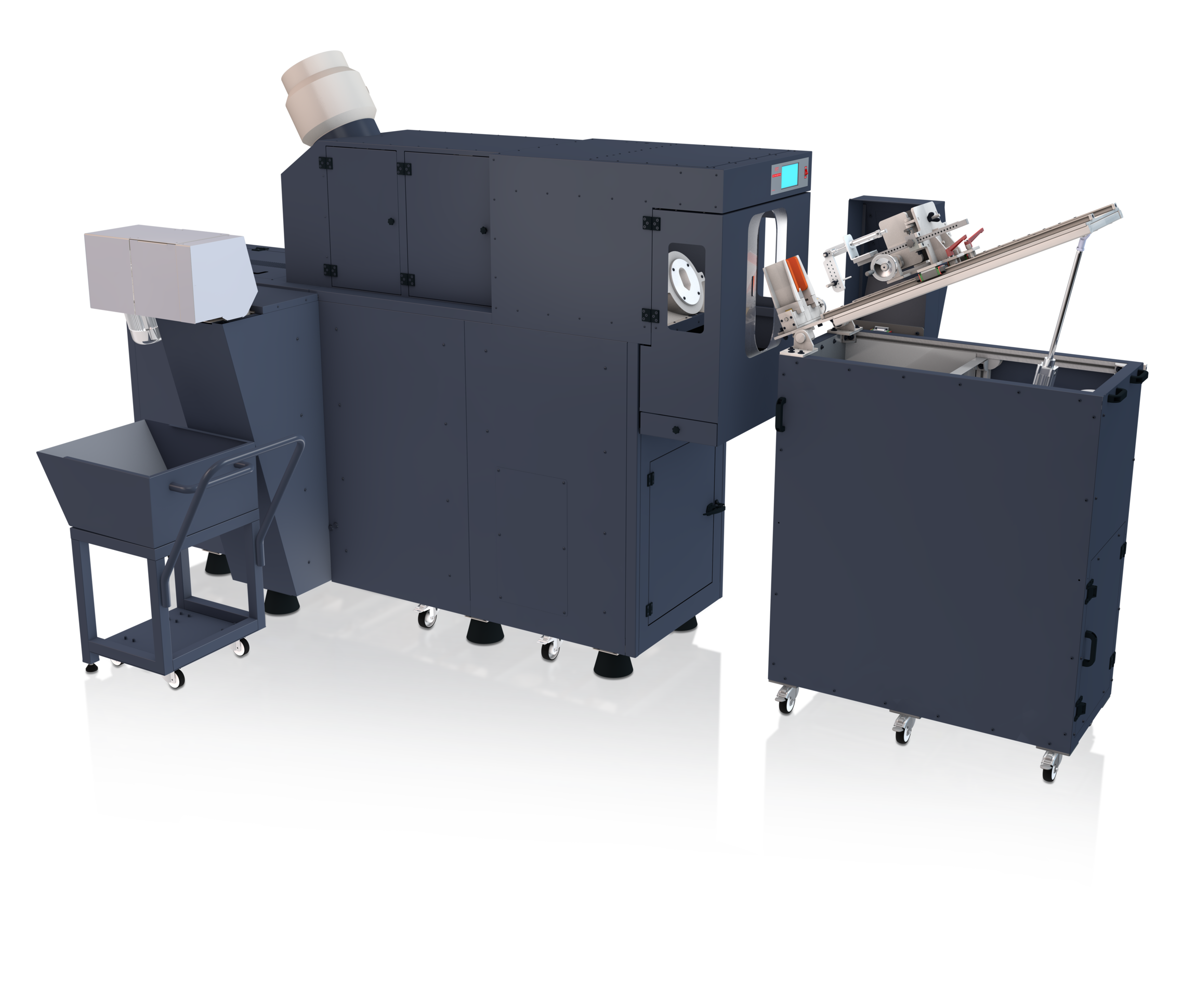

The FTS-300 M is a high-capacity ballistic testing system designed for safe and accurate evaluation of handgun and rifle ammunition, including 5.56 x 45 mm, 7.62 x 39 mm, and 7.62 x 51 mm. Built from stainless steel with a braked wheel structure, it features a 1100 L water tank, a bullet casing collection cart, and a fixed shooter platform, ensuring durability and controlled operation through a touch screen panel.



The system operates on 220–240 VAC, supports 10–50 °C, and includes modular sections for shooting, ventilation, and conveyor options. Optional accessories like mobile water filtration and remote trigger stations make the FTS-300 M a reliable, flexible, and professional solution for ballistic testing centers.

Feature Value
Product Name FTS-300 M
Part Code 0367-0150/01
Feature Description
External Dimensions (WxHxD) 1780 x 2255 x 3270 mm
Internal Dimensions (WxHxD) 71.5x122x224 cm
Material Stainless Steel + Powder Painted
Wheel Structure Braked Wheel
Maximum Water Capacity 1100 (± 50) L
Empty Weight Of The Water Tank 960 kg (± 10) + Conveyor
Total Weight 2060 kg (± 30) + Conveyor
Bullet Casing Collection Tool Weight 50 kg (± 2)
Feature Value
Voltage 220 - 240 VAC 50-60 Hz
Maximum Power 1600 W
Feature Value
Control System Touch Screen Panel
Feature Value
Supported Ammunition Type 6x35 mm, 7.65 x 17 mm, 9 x 18 mm, 9 x 19 mm, 5.56 x 45 mm, 7.62 x 39 mm, 7.62 x 51 mm
Feature Value
Operating Temperature 10°C – 50°C (Room Temperature)
Feature Value
S-Conveyor System S-Heavy Duty LED Lighting
S-Air Ventilation Q-RTS-300 Remote Trigger Station
S-Water Filtration Q-Mobile Firearm & Ammunition Test Center (Variable Size 20” HC, 40” HC)
Tank Water Capacity 1100 ± 50 L
Tank Section Empty Weight 960 ± 10 kg + Conveyor Weight
Total Tank Weight 2060 ± 30 kg + Conveyor Weight
Cartridge Collection Cart Weight 50 ± 2 kg
Fixed Platform for Shooter Weight 22 ± 1 kg
Section Width Depth Height Weight
Shooting Section (Head Section) 800 mm 1060 mm 710 mm 65 ± 2 kg
Shooting Section Front Cover 800 mm 350 mm 900 mm 28 ± 1 kg
Front Section (1st Section) 800 mm 1740 mm 1580 mm 420 ± 10 kg (Empty)
Rear Section (2nd Section) 800 mm 1200 mm 1580 mm 320 ± 10 kg (Empty)
Conveyor Section 630 mm 1580 mm 1750 mm 65 ± 2 kg
Ventilation Fan Section 640 mm 1220 mm 770 mm 62 ± 2 kg
Cartridge Collection Cart 600 mm 1000 mm 1070 mm 50 ± 2 kg
Fixed Platform for Shooter (Two-Piece Step Design) 1000 mm 1000 mm 500 mm 22 ± 1 kg
