XTC-1200-DK

Evidence Drying System

XTC-1200-DK

The XTC-1200-DK Forensic Evidence Drying Systems is a professional-grade forensic equipment designed to safely preserve and dry critical evidence in controlled environmental conditions.



Built with advanced humidity and temperature control systems, the XTC-1200-DK maintains precise environmental parameters (1-81% RH, 20-45°C) essential for evidence integrity. Featuring dual drying units with 2x750W capacity and automatic control systems, it ensures faster and more efficient drying processes compared to traditional air-drying methods.

Request Quote
Brochure PDF
Product Code

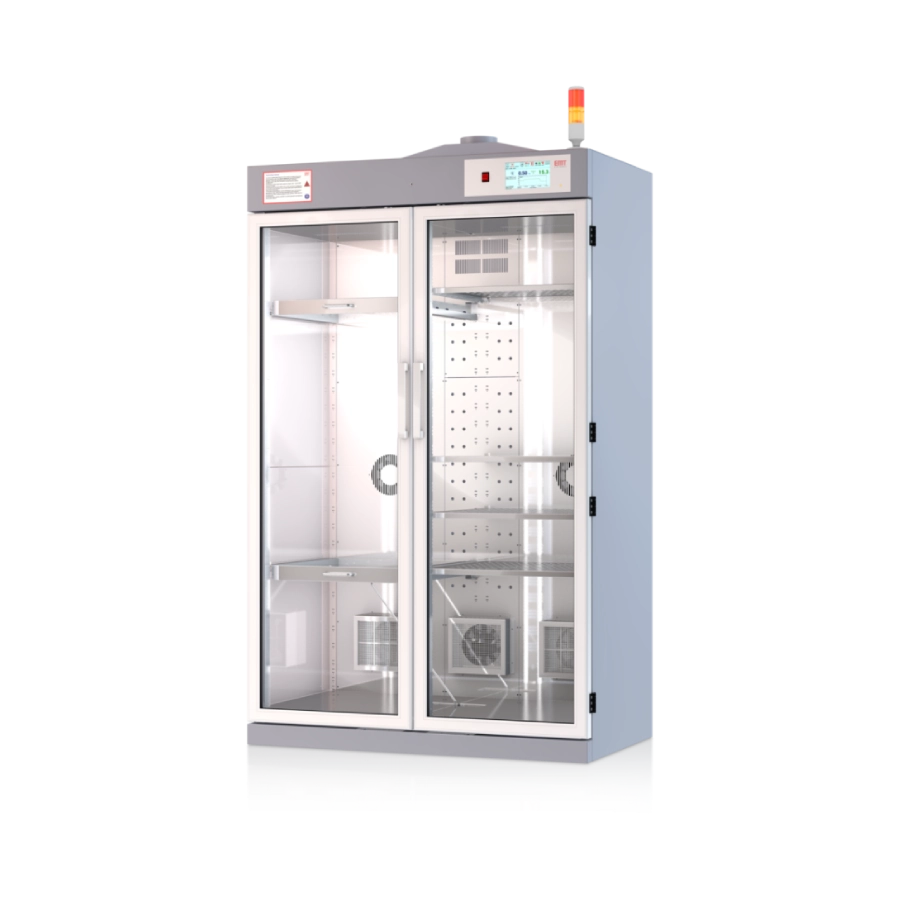

XTC-1200-DK Evidence Drying Cabinet
Feature Description
External Dimensions (WxHxD) 1200 x 1990 x 750 mm
Internal Dimensions (WxHxD) 1175 x 1538 x 631 mm
Net Volume 1215 L
Weight (Depends on Configuration) 259 kg
Max. Load Capacity of a Shelf 25 kg
Body Material Electrostatic Painted Steel (AISI 430), Stainless Steel Interior Panel (AISI 304)
Feature Value
Humidity Set Range 1% - 81% RH (1% to Ambient)
Temperature Set Range (Optional) 20°C - 45°C (Ambient to Set Value)
Time to Reach to Set Humidity Level from Ambient 15 minutes (with two dryer unit) / <30 minutes (with single dryer unit)
Number of Doors 2
Feature Value
Voltage 220 – 240 V AC 50 Hz – 110 V AC 50 Hz (± )
Maximum Average Max Power 10A - 16 A / 2300 W Max
Average Power Consumption 50 W / Hour (Depends on Configuration)
Feature Advantage/Description
Second Dryer unit Reaching the set humidity level 50% faster, It shortens the duty of drying alternatively, provides an uninterrupted drying process
Second Dryer unit - Capacity 750 W
Automatic Door Lock - Control Access code as password
Shelve Capacity - Evidence Drying Cabinet 5 pcs. (1 piece evidence hanger, 4 pieces standard shelves)
Net Volume Humidity Range Temperature Range Dual Drying Units
1215L 1-81% 20-45°C 2 x 750 W
