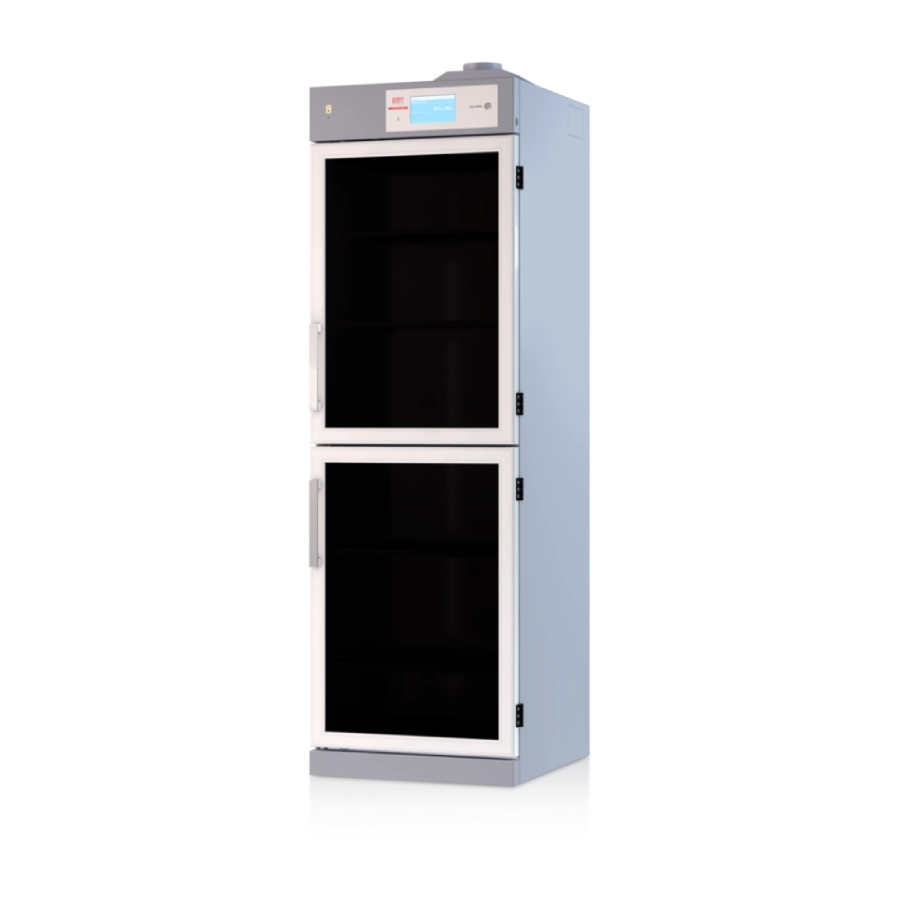

XSC-600-ND

Ninhydrin Vapor Cabinet

XSC-600-ND

The XSC-600-ND Ninhydrin Cabinet is a high-performance forensic development cabinet designed for precise humidity and temperature-controlled environments, essential for ninhydrin processing and fingerprint visualization.



Equipped with advanced climate control technology, the XSC-600-ND maintains accurate environmental parameters (0.5–50% RH, 15–100°C) to ensure consistent and reliable results. Its powerful dual heating system (2×750W) and automatic solenoid door locks provide secure, efficient, and uninterrupted operation. With a 600-liter capacity and high-quality stainless steel construction, it offers superior durability and performance for professional forensic laboratories.

Request Quote
Brochure PDF
Product Code
XSC-600-ND Ninhydrin Cabinet
Feature Description
External Dimensions (WxHxD) 606 x 1990 x 750 mm
Internal Dimensions (WxHxD) Non Isolated 604 x 1654 x 630 mm
Internal Dimensions (WxHxD) Isolated 584 x 1634 x 630 mm
Net Volume Non Isolated 625 L
Net Volume Isolated 600 L
Weight (Depends on Configuration) 134 kg
Max. Load Capacity of a Shelf 50 kg
Body Material Electrostatic Painted Steel (AISI 430), Stainless Steel Interior Panel (AISI 430)
Door Glass 24 mm Insulating Thermal Glass
Shelves & Drawers Stainless Steel (5 pcs.)
Feature Value
Humidity Set Range 0.5% - 50% RH (0.5% to Ambient)
Temperature Set Range (Optional) 15 °C - 100 °C (Ambient to Set Value)
Time to Reach to Set Humidity Level from Ambient < 7 minutes
Number of Doors 2
Door Lock Automatic Solenoid Locks with Password
Feature Value
Voltage 220 – 240 V AC 50 Hz – 110 V AC 60 Hz (±10%)
Current / Max Power 10 A - 16 A / 2200 W Max
Average Power Consumption 50 W / Hour (Depends on Configuration)
Max Power Consumption / Hour 3100 W
Feature Advantage/Description
Heater Capacity 750 W
Automatic Door Lock Control Access code used as password, solenoid controlled
Shelf Capacity 5 pcs. Stainless Steel Shelves
Humidity Level Alarm Adjustable Offset: 0% - 40% Adjustable Time Bar
Door Left Open Alarm Adjustable Time to Alarm: 10 - 240 seconds
Temperature Level Alarm After Door Close: 1 – 60 minutes
Net Volume (Isolated) Humidity Range (RH) Temperature Range Heater Capacity
600L 0.5–50% 15–100°C 2 x 750 W
